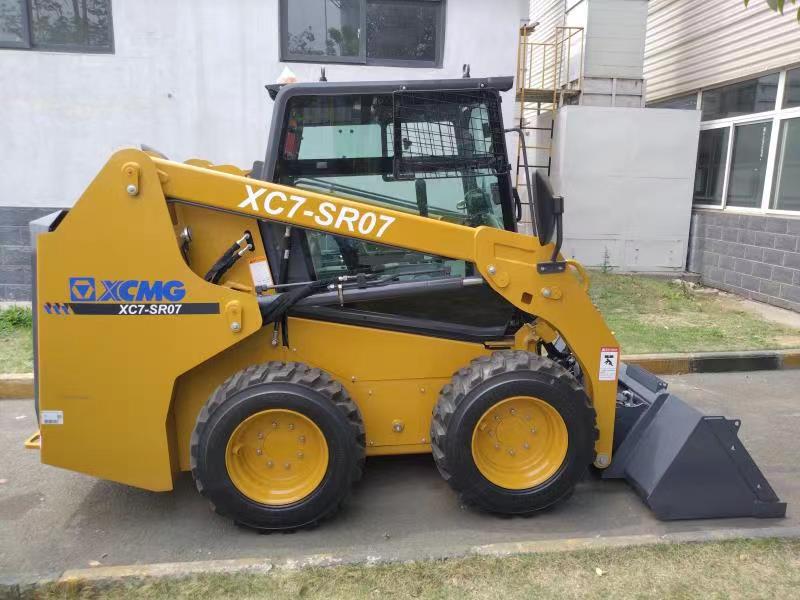

XCMG Direct From Factory Xc7-Sr07 China Mini Skid Steer Loader with CE
Product Description
XCMG XC740K with strong power and rich attachments, the XCMG skid-steer loader can better adapt to the operations in narrow space and is an ideal tool for road construction, municipal maintenance, port handling, garden maintenance, and pasture production, featuring low operation cost and remarkable economic benefits.
Advantages and Highlights:
1. Strong and Efficient Power Transmission System
* The renowned brand engine equipped features strong power,
ultra-low emission, and higher fuel efficiency.
* The static hydraulic drive technology adopted features stable
drive and high efficiency and reliability.
* The fully-sealed sprocket case and high strength chains feature
automatic lubrication and maintenance-free.
2. Incomparable Multi-Functionalities
The international interchangeable quick-change coupling enables the
change of tens of attachments, including sweeper, planer, breaking
hammer, and ditcher, rapidly and conveniently.
3. Solid and Reliable Design
The integral frame adopted features compact structure and high
firmness and reliability. All critical structural parts are
optimized through finite element analysis to realizereasonable
stress distribution.
4. Flexible Operations
The bucket can automatically maintain level status during lifting
to prevent scattering of material and improve working efficiency.
Product Parameters
| Parameters | Unit | XC740K | |
| Rated load | kg | 750 | |
| Tipping load | kg | 1500 | |
| Operating weight | kg | 3140 | |
| Maximum breakout force | kN | 18 | |
| Engine | Manufacturer | Xinchai | |
| Model | 4D27G31 | ||
| Rated power | Hp/kw | 49.3/36.8 | |
| Rated speed | rpm | 2500 | |
| Cooling mode | Water-cooling | ||
| Performance parameter | Operation mode | Mechanical & multi-function electronic control | |
| Tire standard | 10-16.5 | ||
| Maximum speed | Km/h | 14 | |
| Hydraulic system | Hydraulic flow rate | L/min | 62.5 |
| Optional large flow | -- | ||
| Hydraulic pressure | bar | 200 | |
| A | Maximum operating height | mm | 3878 |
| B | Bucket hinge pin height | mm | 3057 |
| C | Cabin top height | mm | 1960 |
| D | Maximum horizontal height of bucket bottom | mm | 2851 |
| E | Length without bucket | mm | 2533 |
| F | Length with bucket | mm | 3310 |
| G | Toppling angle | ° | 40 |
| H | Maximum unloading height | mm | 2375 |
| K | Ground-bucket angle | ° | 30 |
| L | Rotating angle of bucket at highest point | ° | 83 |
| J | Unloading distance | mm | 575 |
| M | Wheel base | mm | 1027 |
| O | Departure angle | ° | 25 |
| P | Ground clearance | mm | 183 |
| R | Front radius of turning circle (without bucket ) | mm | 1183 |
| S | Front radius of turning circle (with bucket) | mm | 2066 |
| T | Rear radius of turning circle | mm | 1564 |
| U | Length of tail | mm | 1005 |
| V | Wheel track | mm | 1380 |
| W | Tire edge width | mm | 1640 |
| X | Bucket edge width | mm | 1800 |
| Bucket capacity (stacking height) | m3 | 0.45 | |
| Bucket capacity (tiling) | m3 | 0.35 | |
| Diesel tank capacity | L | 80 | |
| Capacity of hydraulic oil tank | L | 60 | |
FAQ
We are a manufacturer. We have seven years of experience in manufacturing attachments for skid steer,loader,excavator and tractor,ect. It is the top producer and exporter in the industry.
Our factory is in Wutun Industry Garden,Gulou,Xuzhou City,Jiangsu Province, China
It's near Qingdao/Shanghai/Lian Yungang port.
Ordinarily, it costs 20-25 workdays for 2x40ft containers. Sample order in 5 days.
Payment≤20000USD,100% in advance. Payment＞20000USD, 30% T/T in advance, balance after production completed. Or LC at sight.
Raw material inspection-checking drawing before production-inspect the actual size according to drawing-finished product inspection- testing report-package inspection-qualified certification. Have you opened a new location, redesigned your shop, or added a new product or service? Don't keep it to yourself, let folks know.
We provide 12 months warranty, which has a professional after-sales service team to solve your problems within two hours, 24 hours a day, 7 days.
